Cod : R107G10L 1/4C

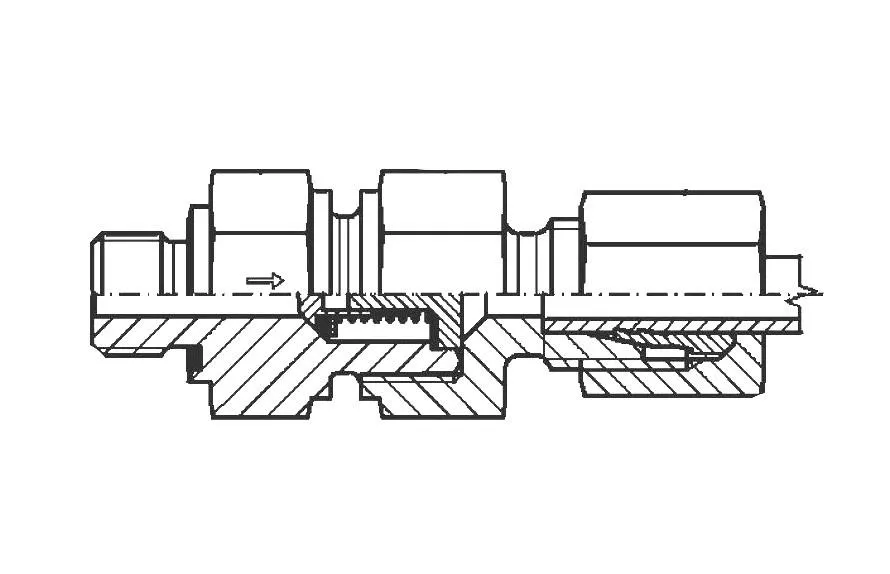

Descriere : TN 107GG - 10LR 1/4'' SUPAPA SENS BSP CORP
Descriere alternativa: TN 107GG- 10LR
Divizie : TUBIflex
Familie : RT - 11. Racorduri hidraulice DIN 2353
Grup : RTS - 07.11. Supape de sens
Categorie : RTS107 - 07.11.02. TN 107 Supape de sens filet exterior cilindric (sens filet spre tub)
Subcategorie : 107LR - 07.11.02.01. TN 107GG LR Supapa de sens filet exterior BSP (sens filet spre tub)
Barcode : 0021936
Clasificare :
Clasa Articol : 1
Folosit pe web : Da
Unitate de masura : BUC
Unitate de masura(decimale) : 0
Unitate de masura(descriere) : Bucăți
Standard : DIN 2353/ISO 8434-1
Caracteristici :
| Propietate | Descriere |
|---|---|
| PN | 250 |
| Diametru teava | 10 |
| Ød1 | 10 |
| F | 1/4''-19 |
| CH1 | 19 |
| CH5 | 24 |
| CH6 | 22 |
| ØN | 19 |
| I | 12 |
| L | 53 |
| L1 | 38.5 |
